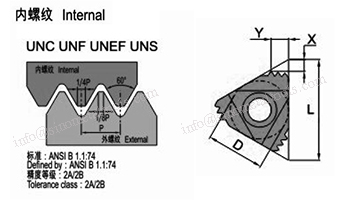

NR-UN-M
- American UN-60 degree
- Internal thread, multi-tooth
- PVD coated
|
Designation |
IC |
L |
Pitch |
X |
Y |
Thickness |
|
16NR 16UN-2M |
3/8” |
16 |
16 |
1.7 |
2.4 |
3.65 |
|
22NR 16UN-3M |
1/2” |
22 |
16 |
2.5 |
4.0 |
4.76 |
|
22NR 12UN-2M |
1/2” |
22 |
12 |
2.1 |
3.2 |
4.76 |
|
22NR 12UN-3M |
1/2” |
22 |
12 |
3.3 |
5.2 |
4.76 |
|
27NR 8UN-2M |
5/8” |
27 |
8 |
3.0 |
4.8 |
6.35 |
|
