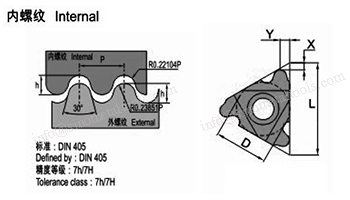

NR-RD405


  •   Thread-turning
  •   Thread-turning
  •   Thread-turning

Designation

IC
(D)

L

Pitch
(TPI)

X

Y

 Hmin

Thickness
(T)

16NR/L 10RD

3/8”

16

10

1.1

1.2

1.27

3.65

16NR/L 8RD

3/8”

16

8

1.3

1.4

1.59

3.65

16NR/L 6RD

3/8”

16

6

1.5

1.7

2.12

3.65

22NR/L 6RD

1/2”

22

6

1.5

1.7

2.12

4.76

22NR/L 4RD

1/2”

22

4

1.7

2.3

3.18

4.76

27NR/L 4RD

5/8”

27

4

1.7

2.3

3.18

6.35
