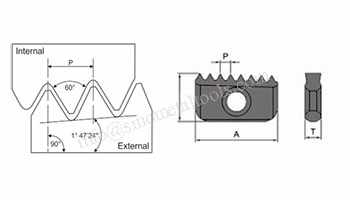

TM-NPT


  •  Thread Milling
  •  NPT
  •  Internal and External

Pitch

Insert Size

TPI

A=12mm

A=14mm

A=21mm

A=30mm

A=40mm

18

*12E 18NPT
*12N 18NPT

14 - 18 NPT







14



14 - 14 NPT

21 - 14 NPT





11.5





21 - 11.5 NPT

30 - 11.5 NPT

40 - 11.5 NPT

8







30 - 8 NPT

40 - 8 NPT

H

6.3

7.5

12

16

20

T

2.9

3.1

4.7

5.5

6.3
