SPMG-ZV
- U-drill Insert
- U-drill Insert
- U-drill Insert
|

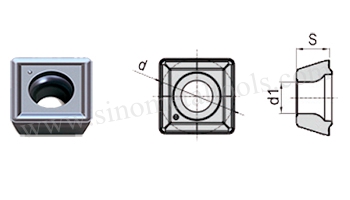

Desgination |
Dimensions(mm) |
|||
| d | S | d1 | r | |
SPMG 050204-ZV |
5.00 |
2.38 |
2.25 |
0.4 |
SPMG 060204-ZV |
6.00 |
2.38 |
2.50 |
0.4 |
SPMG 07T308-ZV |
7.94 |
3.97 |
2.80 |
0.8 |
SPMG 090408-ZV |
9.80 |
4.30 |
4.10 |
0.8 |
SPMG 110408-ZV |
11.50 |
4.80 |
4.40 |
0.8 |
SPMG 140512-ZV |
14.30 |
5.20 |
5.50 |
1.2 |
|
