SOMT-ZP
- U-drill Insert-SOMT
- For steel, stainless steel and cast iron
|
Desgination |

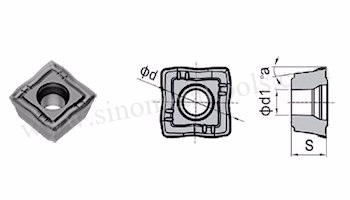

Dimensions(mm) |
|||
| d | S | d1 | r | |
| SOMT 050204-ZP | 4.90 | 2.38 | 2.25 | 0.4 |
| SOMT 060204-ZP | 5.70 | 2.38 | 2.60 | 0.4 |
| SOMT 070306-ZP | 6.80 | 2.80 | 2.60 | 0.6 |
| SOMT 08T306-ZP | 7.90 | 3.97 | 2.85 | 0.6 |
| SOMT 09T308-ZP | 9.20 | 3.97 | 3.80 | 0.8 |
| SOMT 11T308-ZP | 11.00 | 3.97 | 3.80 | 0.8 |
| SOMT130408-ZP | 12.80 | 4.40 | 4.40 | 0.8 |
| SOMT 150510-ZP | 15.00 | 4.80 | 5.40 | 1.0 |
|
