NR-UNJ
- Thread-turning-UNJ

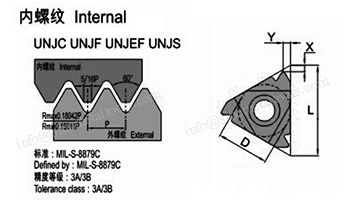

- Internal thread
- For steel and stainless steel, PVD coated
|
Designation |
IC |
L |
Pitch |
X |
Y |
Thickness |
|
11NR/L 28UNJ |
1/4 |
11 |
28 |
0.7 |
0.7 |
3.20 |
|
11NR/L 24UNJ |
1/4 |
11 |
24 |
0.7 |
0.8 |
3.20 |
|
11NR/L 20UNJ |
1/4 |
11 |
20 |
0.8 |
0.9 |
3.20 |
|
11NR/L 18UNJ |
1/4 |
11 |
18 |
0.8 |
1.0 |
3.20 |
|
11NR/L 16UNJ |
1/4 |
11 |
16 |
0.9 |
1.1 |
3.20 |
|
11NR/L 14UNJ |
1/4 |
11 |
14 |
1.0 |
1.2 |
3.20 |
|
16NR/L 28UNJ |
3/8 |
16 |
28 |
0.7 |
0.7 |
3.65 |
|
16NR/L 24UNJ |
3/8 |
16 |
24 |
0.7 |
0.8 |
3.65 |
|
16NR/L 20UNJ |
3/8 |
16 |
20 |
0.8 |
0.9 |
3.65 |
|
16NR/L 18UNJ |
3/8 |
16 |
18 |
0.8 |
1.0 |
3.65 |
|
16NR/L 16UNJ |
3/8 |
16 |
16 |
0.9 |
1.1 |
3.65 |
|
16NR/L 14UNJ |
3/8 |
16 |
14 |
1.0 |
1.2 |
3.65 |
|
16NR/L 13UNJ |
3/8 |
16 |
13 |
1.0 |
1.3 |
3.65 |
|
16NR/L 12UNJ |
3/8 |
16 |
12 |
1.1 |
1.3 |
3.65 |
|
