TCGT-LH
- TCGT-LH, Carbide inserts for aluminium
- CNC ground, high positive rake, highly polished, special chipform
- Uncoated Carbide grade for finishing of non-ferrous metals
|

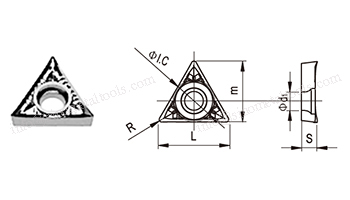

DESGINATION |
DIMENSIONS（MM） |
||||||
|
L |
ФIC±0.05 |
S±0.13 |
Фd1±0.08 |
R±0.05 |
m±0.08 |
||
|
TCGT |
090202-LH |
9.6 |
5.56 |
2.38 |
2.50 |
0.2 |
8.14 |
|
090204-LH |
0.4 |
7.94 |
|||||
|
110202-LH |
11 |
6.35 |
2.38 |
2.80 |
0.2 |
9.322 |
|
|
110204-LH |
0.4 |
9.128 |
|||||
|
110208-LH |
0.8 |
8.725 |
|||||
|
16T302-LH |
16.50 |
9.525 |
3.97 |
4.40 |
0.2 |
14.088 |
|
|
16T304-LH |
0.4 |
13.888 |
|||||
|
16T308-LH |
0.8 |
13.488 |
|||||
|
16T312-LH |
1.2 |
13.088 |
|||||
| 16T316-LH |
1.6 |
12.688 |
|||||
|
|
|||||||
|
