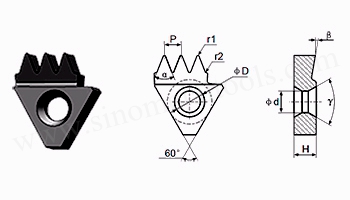

VPDL3C
- Pulley Groove Machining, 3 teeth
- r1 and r2 to be custom-made
- Coated
|
DESGINATION |
DIMENSIONS（MM） |
|||||
|
ΦD |
Φd |
α |
β |
γ |
P |
|
|
VPDL3C-i |
9.525 |
4.44 | 40° | 10° | 60° | 3.56 |
|
VPDL3C-II |
9.525 |
6.35 | 40° | 10° | 75° |
3.56 |
|
