THC42-CE15R
- Parting and Grooving-THC42-CE15R
- IC=7.94mm, positive rake, lead angle 15 deg, right direction
- Precision ground PVD-coated
- First Choice For steel , stainless steel, non-ferrous metals,
|

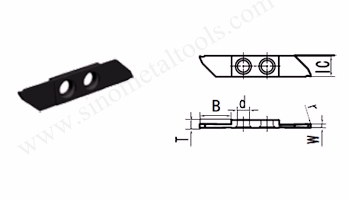

Desgination |
Dimensions(mm) |
|||||
|
W |
B |
r |
α |
T |
d |
|
|
THC42R 100-CE15R |
1.0 |
5 |
0.06 |
15° | 3.07 |
4.35 |
|
THC42R 150-CE15R |
1.5 |
8.5 |
0.06 |
15° |
3.07 |
4.35 |
| THC42R 200-CE15R | 2.0 | 11.5 | 0.1 | 15° | 3.07 | 4.35 |
|
THC42R 250-CE15R |
2.5 |
11.5 |
0.1 |
15° |
3.07 |
4.35 |
|
THC42R 300-CE15R |
3.0 |
11.5 |
0.2 |
15° |
3.07 |
4.35 |
|
THC42R 340-CE15R |
3.4 |
11.5 |
0.2 |
15° |
3.47 |
4.35 |
|
