TKF12-NB-20DR
- Parting off Insert-TKF12-NB-20DR
- Insert Size 12, with 20 deg.
- Precision ground, cutting width 0.5-2.0mm
- Coated and Uncoated for steel, stainless and non-ferrous metals

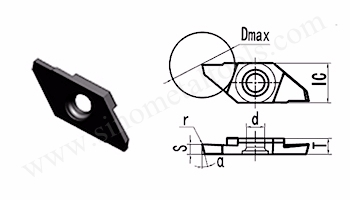

| Desgination |
Dimensions(mm) |
|||||
|
CW |
α° |
Depth |
IC |
T |
d |
|
|
TKF12R/L 050-NB-20DR |
0.5 |
20 |
2.5 |
8.7 |
3 |
5 |
|
TKF12R/L 070-NB-20DR |
0.7 |
20 |
4 |
8.7 |
3 |
5 |
|
TKF12R/L 100-NB-20DR |
1.0 |
20 |
6 |
8.7 |
3 |
5 |
|
TKF12R/L 150-NB-20DR |
1.5 |
20 |
6 |
8.7 |
3 |
5 |
|
TKF12R/L 200-NB-20DR |
2.0 |
20 |
6 |
8.7 |
3 |
5 |
|
