GBA43-Radius

DBA43

  •    Parting & Grooving-GBA43, Radius
  •    Cutting width up to 5.0mm,  Cutting depth up to 5.0mm, radius up to 2.5.
  •    Right hand and left hand, precision ground
  •    PVD coated and uncoated for steel, stainless, and non-ferrous materials
Desgination

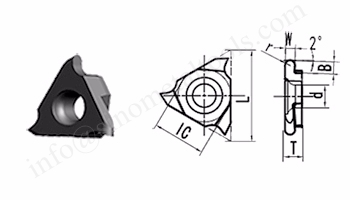

Dimensions(mm)

W

B

r

L

IC

T

GBA43R/L 100-R0.5

1.0

2.5

0.5

22

12.7

4.76

GBA43R/L 150-R0.75

1.5

3.0

0.75

22

12.7

4.76

GBA43R/L 200-R1.0

2.0

3.5

1.0

22

12.7

4.76

GBA43R/L 250-R1.25

2.5

4.6

1.25

22

12.7

4.76

GBA43R/L 300-R1.5

3.0

4.6

1.5

22

12.7

4.76

GBA43R/L 350-R1.75

3.5

4.6

1.75

22

12.7

4.76
