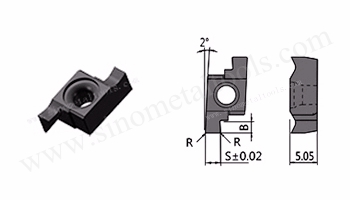

GER-DM-E

GER-DM-E

  •   GER, E type, Internal Circlip grooving,
  •    Left hand inserts, for use with right hand toolholder

  •    Groove width: 1.50 ~3.5mm, cutting depth:up to 6.5mm
  •   Precision Ground
  •   Grades coated and uncoated, for steel, stainless steel, and non-ferrous metals

Items

Dm

DIMENSIONS(mm)

W

B

r

A

L

GER150 DM10-E

>10mm

1.5

3.6

0.1

9.54

21.66

GER200 DM10-E

>10mm

2.0

4.8

0.2

9.54

21.66

GER250 DM15-E

>15mm

2.5

6.0

0.2

9.54

21.66

GER300 DM15-E

>15mm

3.0

6.5

0.2

9.54

21.66

GER350 DM15-E

>15mm

3.5

6.5

0.2

9.54

21.66
