GEL-DM-E

GER-E

  •    GEL-DM-E, Internal Circlip grooving, E type
  •    Left hand inserts, for use with right hand toolholder

  •    Groove width: 1.50 ~5.0mm, cutting depth:3.6-6.5mm
  •   Same items with radius are available
  •   Grades coated and uncoated, for steel, stainless steel, and non-ferrous metals

Items

Dm

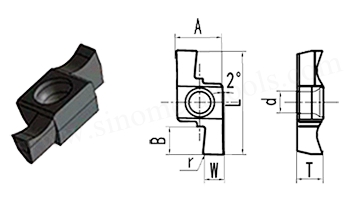

DIMENSIONS(mm)

W

B

r

A

L

GEL150 DM10-E

>10MM

1.5

3.6

0.1

9.54

21.66

GEL200 DM10-E

>10MM

2.0

4.8

0.2

9.54

21.66

GEL250 DM15-E

>15MM

2.5

6.0

0.2

9.54

21.66

GEL300 DM15-E

>15MM

3.0

6.5

0.2

9.54

21.66

GEL350 DM15-E

>15MM

3.5

6.5

0.2

9.54

21.66
