GER/L-ER
- GER/L-ER, Internal Grooving, E Type, with radius
- Cutting width: 2.0 ～5.0mm, cutting depth 6.5 mm, hole size 4.4mm.
- Precision Ground, radius from 1.25 to 2.5.
- Grades coated and uncoated, for steel, stainless steel, and non-ferrous metals

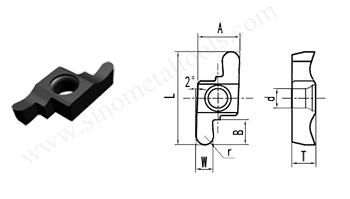

| Desgination |
Dimensions(mm) |
|||||
|
W |
B |
r |
A |
T |
L |
|
|
GER/L 250-125ER |
2.5 |
6.5 |
1.25 |
9.54 |
21.66 |
5.55 |
|
GER/L 300-150ER |
3.0 |
6.5 |
1.5 |
9.54 |
21.66 |
5.55 |
|
GER/L 350-175ER |
3.5 |
6.5 |
1.75 |
9.54 |
21.66 |
5.55 |
|
GER/L 400-200ER |
4.0 |
6.5 |
2.0 |
9.54 |
21.66 |
5.55 |
|
GER/L 450-225ER |
4.5 |
6.5 |
2.25 |
9.54 |
21.66 |
5.55 |
|
GER/L 500-250ER |
5.0 |
6.5 |
2.5 |
9.54 |
21.66 |
5.55 |
|
