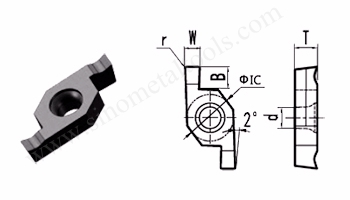

VC16
- VC16, Internal Circlip Grooving
- Double-ended, Rake Positive
- PVD-coated and uncoated
- For steel and stainless steel and non-ferrous metals
Desgination |
Dimensions(mm) |
|||||
W |
B |
r |
IC |
T |
d |
|
VC16R100-DM20L | 1.0 | 2.5 | 0.1 | 9.525 | 4.6 | 4.4 |
VC16R125-DM20L | 1.25 | 2.5 | 0.1 | 9.525 | 4.6 | 4.4 |
VC16R150-DM20L |
1.5 |
4.8 |
0.2 |
9.525 |
4.6 |
4.4 |
VC16R180-DM20L |
1.8 |
4.8 |
0.2 |
9.525 |
4.6 |
4.4 |
VC16R200-DM20L | 2.0 | 4.8 | 0.2 | 9.525 | 4.6 | 4.4 |
VC16R250-DM20L |
2.5 |
4.8 |
0.2 |
9.525 |
4.6 |
4.4 |
VC16R300-DM20L |
3.0 |
4.8 |
0.2 |
9.525 |
4.6 |
4.4 |
