SPDR
- Parting and grooving-SPDR
- Internal Circlip Grooving
- Groove width=0.8-3.0mm
- Recommended for steel,stainless steel, non-ferrous metals
|

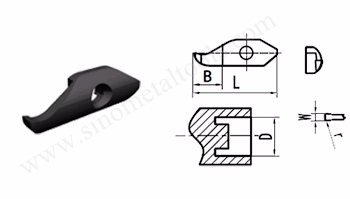

Desgination |
Dimensions(mm) |
|||||
|
Dmin. |
Dmax |
W |
B |
r |
L |
|
|
SPDR080DM06 |
6 |
∞ |
0.8 |
4.5 |
0.1 |
25.1 |
|
SPDR100DM06 |
6 |
∞ |
1.0 |
6 |
0.15 |
25.1 |
| SPDR120DM06 | 6 | ∞ | 1.2 | 6 | 0.15 | 25.1 |
|
SPDR150DM06 |
6 |
∞ |
1.5 |
6 |
0.15 |
25.1 |
|
SPDR100DM10 |
10 |
32 |
1.0 |
5.4 |
0.2 |
25.1 |
|
SPDR150DM10 |
10 |
32 |
1.5 |
6.4 |
0.2 |
25.1 |
|
SPDR200DM10 |
10 |
∞ |
2.0 |
7.8 |
0.2 |
25.1 |
|
