GK12R
- Parting and Grooving-DK12R and DK18R
- Internal Grooving

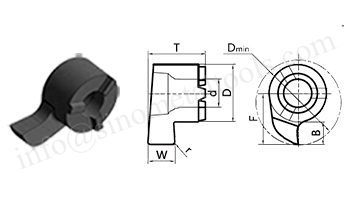

- Groove width=1.5-5.0mm T=5.9mm, 7.9mm, d=3.6mm, 5.1mm
- Recommended for steel and stainless steel, non-ferrous metal, PVD-coated
|
Desgination |
Dimensions(mm) |
|||||
|
Dmin |
W |
B |
r |
F |
D |
|
|
GK12R150 |
12 |
1.5 |
4.3 |
0.1 |
8.08 |
7.3 |
|
GK12R160 |
12 |
1.6 |
4.3 |
0.1 |
8.08 |
7.3 |
| GK12R200 | 12 | 2.0 | 4.3 | 0.1 | 8.08 | 7.3 |
|
GK12R225 |
12 |
2.25 |
4.3 |
0.2 |
8.08 |
7.3 |
|
GK18R200 |
18.5 |
2.0 |
7 |
0.2 |
12.7 |
11.2 |
|
GK18R225 |
18.5 |
2.25 |
7 |
0.2 |
12.7 |
11.2 |
|
GK18R240 |
18.5 |
2.4 |
7 |
0.2 |
12.7 |
11.2 |
|
