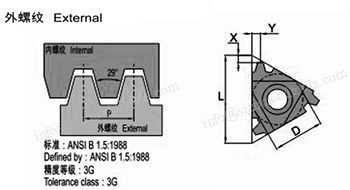

美制29°梯形螺纹ER-ACME
- Thread-turning
- Thread-turning
- Thread-turning
Designation |
IC |
L |
Pitch |
X |
Y |
Thickness |
16ER/L 16 ACME |
3/8” |
16 |
16 |
1.0 |
1.1 |
3.65 |
16ER/L 14 ACME |
3/8” |
16 |
14 |
1.0 |
1.2 |
3.65 |
16ER/L 12 ACME |
3/8” |
16 |
12 |
1.1 |
1.2 |
3.65 |
16ER/L 10 ACME |
3/8” |
16 |
10 |
1.3 |
1.3 |
3.65 |
16ER/L 8 ACME |
3/8” |
16 |
8 |
1.4 |
1.5 |
3.65 |
22ER/L 6 ACME |
1/2” |
22 |
6 |
1.8 |
2.1 |
4.76 |
22ER/L 5 ACME |
1/2” |
22 |
5 |
2.0 |
2.3 |
4.76 |
27ER/L 4 ACME |
5/8” |
27 |
4 |
2.4 |
2.7 |
6.35 |
