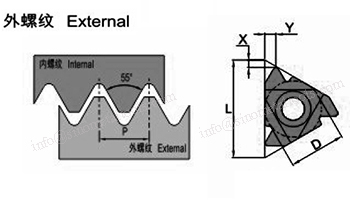

55°通用型螺纹Partial Profile (55)
- Thread-turning
- Thread-turning
- Thread-turning
|
Designation |
IC |
L |
Pitch (mm) |
Pitch |
X |
Y |
Thickness |
|
11ER/L A55 |
1/4” |
11 |
0.5-1.5 |
48-16 |
0.8 |
0.9 |
3.20 |
|
16ER/L A55 |
3/8” |
16 |
0.5-1.5 |
48-16 |
0.8 |
0.9 |
3.65 |
|
16ER/L AG55 |
3/8” |
16 |
0.5-3.0 |
48-8 |
1.2 |
1.7 |
3.65 |
|
16ER/L G55 |
3/8” |
16 |
1.75-3.0 |
14-8 |
1.2 |
1.7 |
3.65 |
|
22ER/L N55 |
1/2” |
22 |
3.5-5.0 |
7-5 |
1.7 |
2.5 |
4.76 |
|
27ER/L Q55 |
5/8” |
27 |
5.5-6.0 |
4.5-4 |
2.0 |
2.9 |
6.35 |
|
