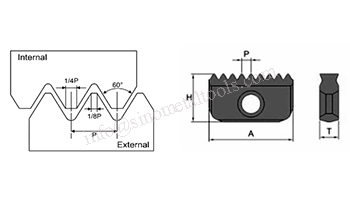

TM-ISO
- Thread-milling
- Thread-milling
|
Pitch |
Insert Size |
|||||
|
mm |
A=12mm |
A=14mm |
A=21mm |
A=30mm |
A=40mm |
|
|
0.5 |
Ext. |
|
|
|
|
|
|
Int. |
*12N0.5 ISO |
14N0.5 ISO |
|
|
|
|
|
0.75 |
Ext. |
|
14E0.75ISO |
|
|
|
|
Int. |
*12N0.75 ISO |
14N0.75 ISO |
|
|
|
|
|
1 |
Ext. |
|
14E1.0 ISO |
21E1.0 ISO |
|
|
|
Int. |
*12N1.0 ISO |
14N1.0 ISO |
21N1.0 ISO |
|
|
|
|
1.25 |
Ext. |
|
14E1.25 ISO |
|
|
|
|
Int. |
*12N1.25 ISO |
14N1.25 ISO |
|
|
|
|
|
1.50 |
Ext. |
|
14E1. 5 ISO |
21E1.5 ISO |
30E1.5 ISO |
40E1.5 ISO |
|
Int. |
*12N1.5 ISO |
14N1.5 ISO |
21N1.5 ISO |
30N1.5 ISO |
40N1.5 ISO |
|
|
1.75 |
Ext. |
|
14E1.75 ISO |
|
|
|
|
Int. |
|
14N1.75 ISO |
21N1.75 ISO |
|
|
|
|
2 |
Ext. |
|
14E2.0 ISO |
21E2.0 ISO |
30E2.0 ISO |
40E2.0 ISO |
|
Int. |
|
14N2.0 ISO |
21N2.0 ISO |
30N2.0 ISO |
40N2.0 ISO |
|
|
2.50 |
Ext. |
|
14E2. 5 ISO |
21E2.5 ISO |
|
|
|
Int. |
|
14N2.5 ISO |
21N2.5 ISO |
|
|
|
|
3 |
Ext. |
|
|
21E3.0 ISO |
30E3.0 ISO |
40E3.0 ISO |
|
Int. |
|
|
21N3.0 ISO |
30N3.0 ISO |
40N3.0 ISO |
|
|
3.50 |
Ext. |
|
|
|
30E3.5 ISO |
|
|
Int. |
|
|
21N3.5 ISO |
30N3.5ISO |
40N3.5 ISO |
|
|
4 |
Ext. |
|
|
|
30E4.0 ISO |
40E4.0 ISO |
|
Int. |
|
|
|
30N4.0ISO |
40N4.0 ISO |
|
|
4.5 |
Ext. |
|
|
|
|
|
|
Int. |
|
|
|
30N4.5ISO |
40N4.5 ISO |
|
|
5 |
Ext. |
|
|
|
|
40E5.0 ISO |
|
Int. |
|
|
|
|
40N5.0 ISO |
|
|
5.5 |
Ext. |
|
|
|
|
|
|
Int. |
|
|
|
|
40N5.5 ISO |
|
|
6 |
Ext. |
|
|
|
|
40E6.0 ISO |
|
Int. |
|
|
|
|
40N6.0 ISO |
|
|
H |
6.3 |
7.5 |
12 |
16 |
20 |
|
|
T |
2.9 |
3.1 |
4.7 |
5.5 |
6.3 |
|
|
