TM-ST90-D63
- Thread Milling
- Thread Milling
- Thread Milling
|
Ordering Code |

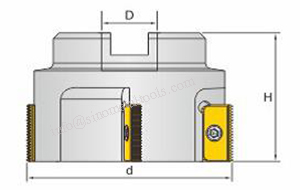

Dimensions( mm) |
Teeth |
Pitch |
|||
|
d |
D |
L |
Zt |
mm |
TPI |
|
|
ST90-63R5T21-P22 |
63 |
22 |
50 |
5 |
1-3.5 |
7-24 |
|
ST90-63R4T30-P22 |
63 |
22 |
50 |
4 |
1.5-5.0 |
6-20 |
|
ST90-80R4T30-P27 |
80 |
27 |
55 |
4 |
1.5-5.0 |
6-20 |
|
ST90-100R4T30-S32 |
100 |
32 |
60 |
4 |
1.5-5.0 |
6-20 |
|
ST90-80R4T40-P27 |
80 |
27 |
65 |
4 |
1.5-6.0 |
4-16 |
|
ST90-100R4T40-S32 |
100 |
32 |
70 |
4 |
1.5-6.0 |
4-16 |
|
