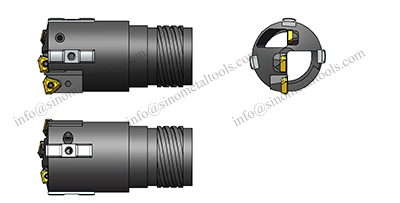

Type-IV Indexable Deep Hole Drills – Cartridge Type
- Internal chip removal deep hole drill
- Drill range : Φ48.00~Φ125.00
- Guide pads and sub pads are available for choice
- Peripheral inserts, central inserts and intermediate inserts are available
- Carbide inserts are available in three grades and coatings for various cutting applications
|
Drill Dia. |
P-Cartri. |
I-Cartri. |
C-Cartri. |
P-Insert |
I-Insert |
C-Insert |
Guide-Pad |
|
IJΦ48.00-IJΦ51.99 |
DZIP14 |
DZIC14 |
DZIC14 |
TPMX1 4T308 |
TPMX1 4T308 |
TPMX1 4T308 |
DQ10LH |
|
IJΦ52.00-IJΦ54.99 |
DZIP17 |
DZIC14 |
DZIC14 |
TPMX1 7T408 |
TPMX1 4T308 |
TPMX1 4T308 |
DQ10LH |
|
IJΦ55.00-IJΦ57.99 |
DZIP17 |
DZIC14 |
DZIC17 |
TPMX1 7T408 |
TPMX1 4T308 |
TPMX1 7T408 |
DQ10LH |
|
IJΦ58.00-IJΦ63.99 |
DZIP17 |
DZIC17 |
DZIC17 |
TPMX1 7T408 |
TPMX1 7T408 |
TPMX1 7T408 |
DQ10LH |
|
IJΦ64.00-IJΦ67.99 |
DZIP24 |
DZIC17 |
DZIC17 |
TPMX2 40512 |
TPMX1 7T408 |
TPMX1 7T408 |
DQ12H |
|
IJΦ68.00-IJΦ77.99 |
DZIP17 |
DZIC24 |
DZIC24 |
TPMX1 7T408 |
TPMX2 40512 |
TPMX2 40512 |
DQ14IH |
|
IJΦ78.00-IJΦ84.99 |
DZIP24 |
DZIC24 |
DZIC24 |
TPMX2 40512 |
TPMX2 40512 |
TPMX2 40512 |
DQ16H |
|
IJΦ85.00-IJΦ91.99 |
DZIP28 |
DZIC24 |
DZIC24 |
TPMX2 80716 |
TPMX2 40512 |
TPMX2 40512 |
DQ16H |
|
IJΦ92.00-IJΦ98.99 |
DZIP24 |
DZIC28 |
DZIC28 |
TPMX2 40512 |
TPMX2 80716 |
TPMX2 80716 |
DQ16H |
|
IJΦ99.00-IJΦ106.99 |
DZIP28 |
DZIC28 |
DZIC28 |
TPMX2 80716 |
TPMX2 80716 |
TPMX2 80716 |
DQ16H |
|
IJΦ107.00-IJΦ117.99 |
DZIP24 |
DZIC17 |
DZIC24 |
TPMX2 40512 |
TPMX1 7T408 |
TPMX2 40512 |
DQ14IH |
|
IJΦ118.00-IJΦ125.00 |
DZIP24 |
DZIC24 |
DZIC24 |
TPMX2 40512 |
TPMX2 40512 |
TPMX2 40512 |
DQ14IH |
|
