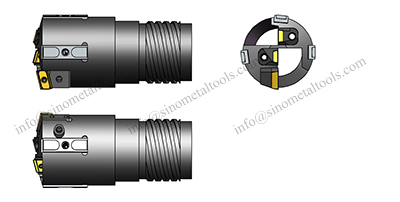

Type-III Indexable Deep Hole Drills- Cartridge Type
- Internal chip removal deep hole drill
- Drill range : Φ64.51~Φ125.00
- Guide pads and sub pads are available for choice
- Peripheral inserts, central inserts and intermediate inserts are available
- Carbide inserts are available in three grades and coatings for various cutting applications
|
Drill Diameter |
P-Cartridge |
I- Cartridge |
C- Cartridge |
P- |
I- |
C- |
Guide-Pad |
|
JΦ64.51-JΦ65.59 |
DZP19 |
DZM17-13 |
DZC17-13 |
P14T308-G1 |
I13T308-G1 |
C13T308-G1 |
DQ12H-H6 |
|
JΦ65.60-JΦ68.39 |
DZP19 |
DZM17-13 |
DZC17-13 |
P14T308-G1 |
I13T308-G1 |
C13T308-G1 |
DQ12H |
|
JΦ68.40-JΦ72.99 |
DZP19 |
DZM17-13 |
DZC17-13 |
P14T308-G1 |
I13T308-G1 |
C13T308-G1 |
DQ14H |
|
JΦ73.00-JΦ79.99 |
DZP23 |
DZM17-13 |
DZC17-13 |
P190608-G1 |
I13T308-G1 |
C13T308-G1 |
DQ14H |
|
JΦ80.00-JΦ82.69 |
DZP23 |
DZM17-13 |
DZC17-13 |
P190608-G1 |
I13T308-G1 |
C13T308-G1 |
DQ16H |
|
JΦ82.70-JΦ90.49 |
DZP23 |
DZM24-19 |
DZC17-13 |
P190608-G1 |
I190608-G1 |
C13T308-G1 |
DQ16H |
|
JΦ90.50-JΦ106.99 |
DZP23 |
DZM24-19 |
DZC24-19 |
P190608-G1 |
I190608-G1 |
C190608-G1 |
DQ16H |
|
JΦ107.00-JΦ120.00 |
DZP19 |
DZM17-13 |
DZC17-13 |
P14T308-G1 |
I13T308-G1 |
C13T308-G1 |
DQ14H |
|
JΦ120.01-JΦ125.00 |
DZP23 |
DZM17-13 |
DZC17-13 |
P14T308-G1 |
I13T308-G1 |
C13T308-G1 |
DQ14H |
|
