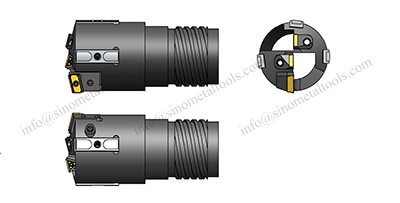

Type-II Indexable Deep Hole Drills –Cartridge Type
- Internal chip removal deep hole drill
- Drill Diameter :Φ 65.00～Φ 125.00
- Guide pads and sub pads are available for choice
- Carbide inserts are in three grades and two chipforms for various applications
|
Drill Dia. |
P-Cartri. |
I-Cartri. |
C-Cartri. |
P-Insert |
I-Insert |
C-Insert |
Guide-Pad |
|
SJΦ65-SJΦ65.5 |
DZP18 |
DZM15 |
DZC15 |
P13T3 08-G |
TPMT16 T312-G |
TPMT16 T312-G |
DQ12 H-H6 |
|
SJΦ65.60-SJΦ68.39 |
DZP18 |
DZM15 |
DZC15 |
P13T3 08-G |
TPMT16 T312-G |
TPMT16 T312-G |
DQ12H |
|
SJΦ68.40-SJΦ73.49 |
DZP18 |
DZM15 |
DZC15 |
P13T3 08-G |
TPMT16 T312-G |
TPMT16 T312-G |
DQ14H |
|
SJΦ73.50-SJΦ79.99 |
DZP22 |
DZM15 |
DZC15 |
P1806 08-G |
TPMT16 T312-G |
TPMT16 T312-G |
DQ14H |
|
SJΦ80.00-SJΦ82.69 |
DZP22 |
DZM15 |
DZC15 |
P1806 08-G |
TPMT16 T312-G |
TPMT16 T312-G |
DQ16H |
|
SJΦ82.70-SJΦ90.49 |
DZP22 |
DZM15 |
DZC20 |
P1806 08-G |
TPMT16 T312-G |
TPMT22 0612-G |
DQ16H |
|
SJΦ90.50-SJΦ106.99 |
DZP22 |
DZM20 |
DZC20 |
P1806 08-G |
TPMT22 0612-G |
TPMT22 0612-G |
DQ16H |
|
SJΦ107.00-SJΦ120.00 |
DZP18 |
DZM15 |
DZC15 |
P13T3 08-G |
TPMT16 T312-G |
TPMT16 T312-G |
DQ14H |
|
SJΦ120.01-SJΦ125.00 |
DZP22 |
DZM15 |
DZC15 |
P1806 08-G |
TPMT16 T312-G |
TPMT16 T312-G |
DQ16H |
|
