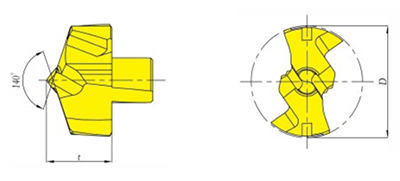

QD-S1 Replaceable Carbide Tips
- Drill diameter 8-26 mm, available in 0.1mm increments
- Point angle: 140°
- Cutter bodies are available in 1.5xD,3xD,5xD,8xD and 12xD
- Work on medium-high carbon steel, alloyed steel, nodular cast iron
- Preferred for shorter than 5xD
- Micro-grain carbide grade, PVD-TIALN coating
|
Designation |
DIM. |
Drill body |
Designation |
DIM. |
Drill body |
||
|
D |
t |
D |
t |
||||
|
QD-080-S1 |
8.0 |
5.4 |
QD080/089-12-D |
QD-110-S1 |
11.0 |
6.6 |
QD110/119-16-D |
|
QD-081-S1 |
8.1 |
5.4 |
QD-111-S1 |
11.1 |
6.6 |
||
|
QD-082-S1 |
8.2 |
5.4 |
QD-112-S1 |
11.2 |
6.6 |
||
|
QD-083-S1 |
8.3 |
5.4 |
QD-113-S1 |
11.3 |
6.6 |
||
|
QD-084-S1 |
8.4 |
5.4 |
QD-114-S1 |
11.4 |
6.6 |
||
|
QD-085-S1 |
8.5 |
5.4 |
QD-115-S1 |
11.5 |
6.6 |
||
|
QD-086-S1 |
8.6 |
5.4 |
QD-116-S1 |
11.6 |
6.6 |
||
|
QD-087-S1 |
8.7 |
5.4 |
QD-117-S1 |
11.7 |
6.6 |
||
|
QD-088-S1 |
8.8 |
5.4 |
QD-118-S1 |
11.8 |
6.6 |
||
|
QD-089-S1 |
8.9 |
5.4 |
QD-119-S1 |
11.9 |
6.6 |
||
|
QD-090-S1 |
9.0 |
5.8 |
QD090/099-12-D |
QD-120-S1 |
12.0 |
7.0 |
QD120/129-16-D |
|
QD-091-S1 |
9.1 |
5.8 |
QD-121-S1 |
12.1 |
7.0 |
||
|
QD-092-S1 |
9.2 |
5.8 |
QD-122-S1 |
12.2 |
7.0 |
||
|
QD-093-S1 |
9.3 |
5.8 |
QD-123-S1 |
12.3 |
7.0 |
||
|
QD-094-S1 |
9.4 |
5.8 |
QD-124-S1 |
12.4 |
7.0 |
||
|
QD-095-S1 |
9.5 |
5.8 |
QD-125-S1 |
12.5 |
7.0 |
||
|
QD-096-S1 |
9.6 |
5.8 |
QD-126-S1 |
12.6 |
7.0 |
||
|
QD-097-S1 |
9.7 |
5.8 |
QD-127-S1 |
12.7 |
7.0 |
||
|
QD-098-S1 |
9.8 |
5.8 |
QD-128-S1 |
12.8 |
7.0 |
||
|
QD-099-S1 |
9.9 |
5.8 |
QD-129-S1 |
12.9 |
7.0 |
||
|
QD-100-S1 |
10.0 |
6.2 |
QD100/109-16-D |
QD-130-S1 |
13.0 |
7.6 |
QD130/139-16-D |
|
QD-101-S1 |
10.1 |
6.2 |
QD-131-S1 |
13.1 |
7.6 |
||
|
QD-102-S1 |
10.2 |
6.2 |
QD-132-S1 |
13.2 |
7.6 |
||
|
QD-103-S1 |
10.3 |
6.2 |
QD-133-S1 |
13.3 |
7.6 |
||
|
QD-104-S1 |
10.4 |
6.2 |
QD-134-S1 |
13.4 |
7.6 |
||
|
QD-105-S1 |
10.5 |
6.2 |
QD-135-S1 |
13.5 |
7.6 |
||
|
QD-106-S1 |
10.6 |
6.2 |
QD-136-S1 |
13.6 |
7.6 |
||
|
QD-107-S1 |
10.7 |
6.2 |
QD-137-S1 |
13.7 |
7.6 |
||
|
QD-108-S1 |
10.8 |
6.2 |
QD-138-S1 |
13.8 |
7.6 |
||
|
QD-109-S1 |
10.9 |
6.2 |
QD-139-S1 |
13.9 |
7.6 |
||
|
