QD-RD Replaceable carbide tip
- With centering function
- Low axial drilling force
- Work on stainless steel, titanium alloy, nickel-base alloy, Manganese steel and the soft materials

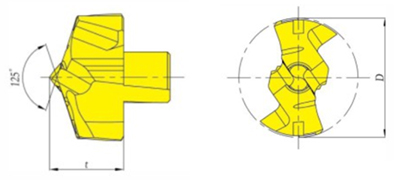

- Point angle: 125 °
- Drill diameter 8-28mm, available in 0.1mm increments
- Drill bodies are available in 1.5xD,3xD,5xD,8xD and 12xD
- Micro-grain carbide grade, PVD-TIALN coating.
|
Designation |
DIM. |
Drill body |
Designation |
DIM. |
Drill body |
||
|
D |
t |
D |
t |
||||
|
QD-080-RD |
8.0 |
5.4 |
QD080/089-12-D |
QD-110-RD |
11.0 |
6.6 |
QD110/119-16-D |
|
QD-081-RD |
8.1 |
5.4 |
QD-111-RD |
11.1 |
6.6 |
||
|
QD-082-RD |
8.2 |
5.4 |
QD-112-RD |
11.2 |
6.6 |
||
|
QD-083-RD |
8.3 |
5.4 |
QD-113-RD |
11.3 |
6.6 |
||
|
QD-084-RD |
8.4 |
5.4 |
QD-114-RD |
11.4 |
6.6 |
||
|
QD-085-RD |
8.5 |
5.4 |
QD-115-RD |
11.5 |
6.6 |
||
|
QD-086-RD |
8.6 |
5.4 |
QD-116-RD |
11.6 |
6.6 |
||
|
QD-087-RD |
8.7 |
5.4 |
QD-117-RD |
11.7 |
6.6 |
||
|
QD-088-RD |
8.8 |
5.4 |
QD-118-RD |
11.8 |
6.6 |
||
|
QD-089-RD |
8.9 |
5.4 |
QD-119-RD |
11.9 |
6.6 |
||
|
QD-090-RD |
9.0 |
5.8 |
QD090/099-12-D |
QD-120-RD |
12.0 |
7.0 |
QD120/129-16-D |
|
QD-091-RD |
9.1 |
5.8 |
QD-121-RD |
12.1 |
7.0 |
||
|
QD-092-RD |
9.2 |
5.8 |
QD-122-RD |
12.2 |
7.0 |
||
|
QD-093-RD |
9.3 |
5.8 |
QD-123-RD |
12.3 |
7.0 |
||
|
QD-094-RD |
9.4 |
5.8 |
QD-124-RD |
12.4 |
7.0 |
||
|
QD-095-RD |
9.5 |
5.8 |
QD-125-RD |
12.5 |
7.0 |
||
|
QD-096-RD |
9.6 |
5.8 |
QD-126-RD |
12.6 |
7.0 |
||
|
QD-097-RD |
9.7 |
5.8 |
QD-127-RD |
12.7 |
7.0 |
||
|
QD-098-RD |
9.8 |
5.8 |
QD-128-RD |
12.8 |
7.0 |
||
|
QD-099-RD |
9.9 |
5.8 |
QD-129-RD |
12.9 |
7.0 |
||
|
QD-100-RD |
10.0 |
6.2 |
QD100/109-16-D |
QD-130-RD |
13.0 |
7.6 |
QD130/139-16-D |
|
QD-101-RD |
10.1 |
6.2 |
QD-131-RD |
13.1 |
7.6 |
||
|
QD-102-RD |
10.2 |
6.2 |
QD-132-RD |
13.2 |
7.6 |
||
|
QD-103-RD |
10.3 |
6.2 |
QD-133-RD |
13.3 |
7.6 |
||
|
QD-104-RD |
10.4 |
6.2 |
QD-134-RD |
13.4 |
7.6 |
||
|
QD-105-RD |
10.5 |
6.2 |
QD-135-RD |
13.5 |
7.6 |
||
|
QD-106-RD |
10.6 |
6.2 |
QD-136-RD |
13.6 |
7.6 |
||
|
QD-107-RD |
10.7 |
6.2 |
QD-137-RD |
13.7 |
7.6 |
||
|
QD-108-RD |
10.8 |
6.2 |
QD-138-RD |
13.8 |
7.6 |
||
|
QD-109-RD |
10.9 |
6.2 |
QD-139-RD |
13.9 |
7.6 |
||
|
