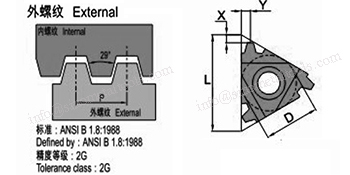

Threading-STACME
|
|
|
|
|
I.C.
|
Pitch
|
Ordering Code
|
L
|
X
|
Y
|
|
TPI
|
RH
|
LH
|
|
External
|
1/4″
|
16
|
11ER16STACME
|
11EL16STACME
|
11
|
1.0
|
1.0
|
|
3/8″
|
16
|
16ER16STACME
|
16EL16STACME
|
16
|
1.0
|
1.0
|
|
14
|
16ER14STACME
|
16EL14STACME
|
1.1
|
1.1
|
|
12
|
16ER12STACME
|
16EL12STACME
|
1.2
|
1.2
|
|
10
|
16ER10STACME
|
16EL10STACME
|
1.3
|
1.3
|
|
8
|
16ER8STACME
|
16EL8STACME
|
1.5
|
1.5
|
|
1/2″
|
6
|
22ER6STACME
|
22EL6STACME
|
22
|
1.8
|
1.8
|
|
5
|
22ER5STACME
|
22EL5STACME
|
2.0
|
2.3
|
|
5/8″
|
4
|
27ER4STACME
|
27EL4STACME
|
27
|
2.3
|
2.4
|
|
3
|
27ER3STACME
|
27EL3STACME
|
2.8
|
2.9
|
|
Internal
|
1/4″
|
16
|
11NR16STACME
|
11NL16STACME
|
11
|
1.0
|
1.0
|
|
3/8″
|
16
|
16NR16STACME
|
16NL16STACME
|
16
|
1.0
|
1.0
|
|
14
|
16NR14STACME
|
16NL14STACME
|
1.1
|
1.1
|
|
12
|
16NR12STACME
|
16NL12STACME
|
1.2
|
1.2
|
|
10
|
16NR10STACME
|
16NL10STACME
|
1.3
|
1.3
|
|
8
|
16NR8STACME
|
16NL8STACME
|
1.5
|
1.5
|
|
1/2″
|
6
|
22NR6STACME
|
22NL6STACME
|
22
|
1.8
|
1.8
|
|
5
|
22NR5STACME
|
22NL5STACME
|
2.0
|
2.3
|
|
5/8″
|
4
|
27NR4STACME
|
27NL4STACME
|
27
|
2.3
|
2.4
|
|
3
|
27NR3STACME
|
27NL3STACME
|
2.8
|
2.9
|
|
